ProPak6™

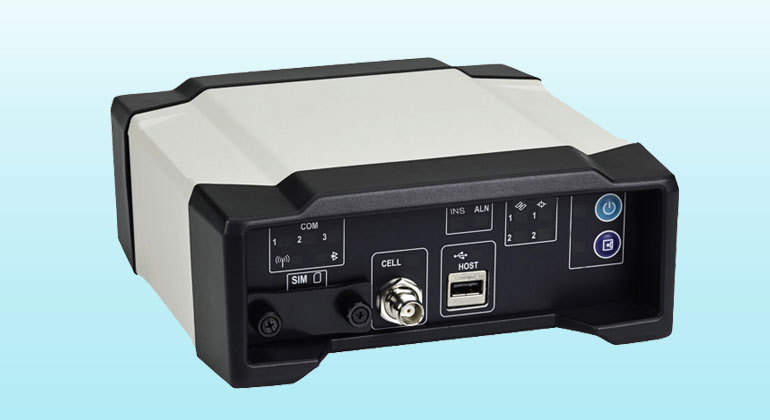

ProPak6™ Triple-Frequency GNSS Receiver
ProPak6™ is an enclosure product manufactured by NovAtel. From standalone metre-level to RTK centimetre-level positioning, the ProPak6 is flexible to meet your positioning needs. Reliability is safeguarded as a result of the extremely rugged and water resistant IP67 housing combined with its wide operating temperature range. NovAtel has also assured faster time to market by reducing integration time with standardized software and hardware connections. The ProPak6 offers optional GPRS/HSPA cellular modem and/or heading options to provide a solution for many applications.
Features
- 240 channels
- Scalable positioning options from metre to centimetre-level
- Standard connectors for simple interfacing
- 4 GB onboard memory for data logging
- Standard Bluetooth® and Wi-Fi connectivity
- Optional GPRS/HSPA cellular modem
- Optional heading
Benefits
- Efficient integration with standard hardware and software interfaces and experienced staff
- Future proof for upcoming GNSS signal support
- Reliable use in harsh environments with the IP67 housing
- Multiple communication interfaces for easy integration and installation
- SPAN® ready
| Attributes | ||
| System Type | Enclosed | |
| General Info | Length (mm) | 190.00 |
| Width/Diametre (mm) | 185.00 | |
| Height (mm) | 75.00 | |
| Weight (g) | 1790.00 | |
| Typical Power Consumption (w) | 3.50 | |
| Signal Tracking | Gps | L1, L2, L2C, L5 |
| GLONASS | L1, L2, L2C | |
| Galileo | E1, E5a, E5b, AltBOC | |
| BeiDou | B1, B2 | |
| Galileo | E1, E5a, E5b, E6, AltBOC | |
| SBAS | ||
| QZSS | L1, L2C, L5 | |
| L-Band | ||
| Number of | Bluetooth | 1 |
| Com Ports | CAN Bus | 1 |
| IMU | 2 | |
| Cellular | 1 | |
| Ethernet | 1 | |
| RS-232 | 3 | |
| RS-422 | 3 | |
| USB Host | 1 | |
| USB Device | 1 | |
| Performance | Accuracy | (RMS) |
| Single Point L1 | 1.5 m | |
| Single Point L1/L2 | 1.2 m | |
| SBAS | 0.6 m | |
| DGPS | 0.4 m | |
| NovAtel CORRECT™ | ||
| TerraStar-c | 4cm | |
| Veripos Apex | 6cm | |
| RT-2® | 1cm+1ppm |
