Communication

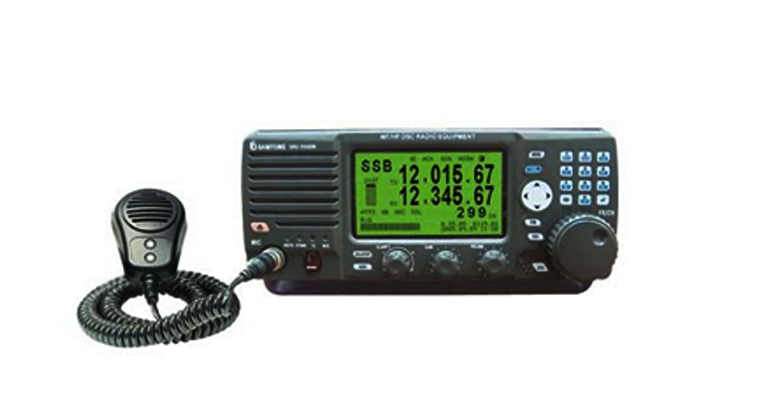

SRG - 3150D/DN

Technical specifications:

• ompliant with ITU, IMO and GMDSS standard.
• Adoption of new conceptual SYNTHESIZER technology improves voice quality, no-nosie.
• Compact size and simplified key and dial enables to operate efficiently.
• Realization of dual display for NBDP terminal and SRG-3150DN makes it easier to read data.
• Designed DSC and W/K receiver built-in integrated transceiver.
• Available rapid scanning for the variation of trnsmitting power, frequencies and channel by group or individual.
• High stability for frequency with 10Hz Step Synthesizer.
• Storing up to 100 transmitted message(editable).
• Storing up to 100 received message. (50 messages for distress and 50 for ordinary)
• Self-diagnosis function for easy maintenance.
• Speaker built-in. (external speaker : option)

Specifications:

General:

• Frequence range
• - TX :1.6~27.5MHz (10Hz STEP)
• - RX :500KHz~29.9999MHz (10Hz STEP)
• TX/RX channel : ITU channel, 300 memory channel
• Frequency tolerance : Within 10HZ
• Type of emission : J3E, F1B, H3E
• Operation : Simplex & Semi-duplex,
• Ambient temperature & Humidity : -15?~+55?, 95%
• Power supply : DC24V±15% (2.5A at Reception, 15A at Transmittion)
