SART Samyung

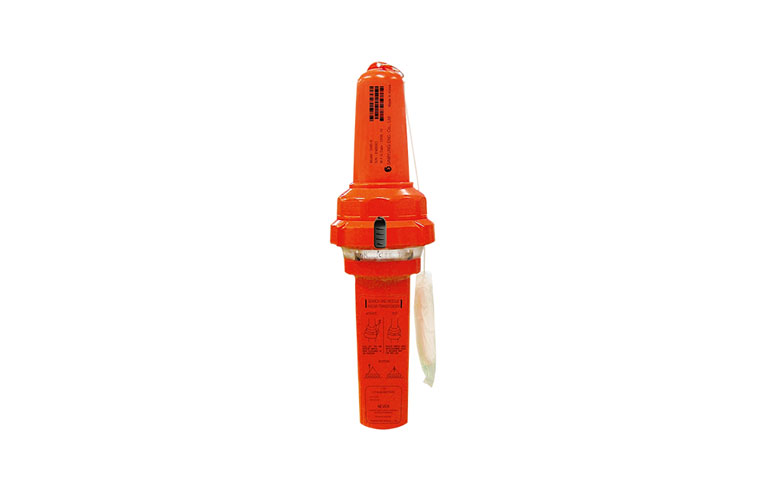

Samyung SAR-9 is a Radar Transponder, which is operated in 9.2~9.5 GHz(3cm) marine radar band. When a radar signalis received from a SAR craft, the SAR-9 automatically starts to transmit a response signal echoing to that Radar.
SAR craft can identify SART s location on the radar screen with 12 in-line dots. Once activated, the SAR-9 will remain in stand-by condition for 96 hours followed by minimum 8 hours transmission
FEATURES
- Complied with related IMO/GMDSS requirements
- Designed for reliable operation in the roughest of marine evironments
- Lightweight and rugged construction is suitable for placing at liferafts.
- Complete set with a liferaft mounting kit
- Efficiently assisting ship or survival craft rescue operations
SPECIFICATIONS
- Frequency : 9.2 ~9.5 GHz
- Polarization : Horizontal
- Vertical beam width : +12.5 Degrees
- Azimuthal beam width : Omnidirectional to ±2dB
- Radiated power : > 400mW (+26dBm)
- Form of sweep : Sawtooth(12 sweeps)
- Pulse emission : < 100㎲
- Forward sweep time : 7.5㎲ ± 1㎲
- Return sweep time : 0.4㎲ ± 0.1㎲
- Recovery time : < 10㎲
- Response time : < 0.5㎲
- Effective sensitivity : better than -50dBm
- Duration of operation : 96 hours in standby condition followed by a minimum 8 hours of transmissin while being continuously interrograted by an X-band radar with a pulse repetition frequency of 1KHz at extreme temperatures
- Battery life : 5 years
- Temperature range : Operating -20℃ to 55℃, Storage -30℃ to 65℃
