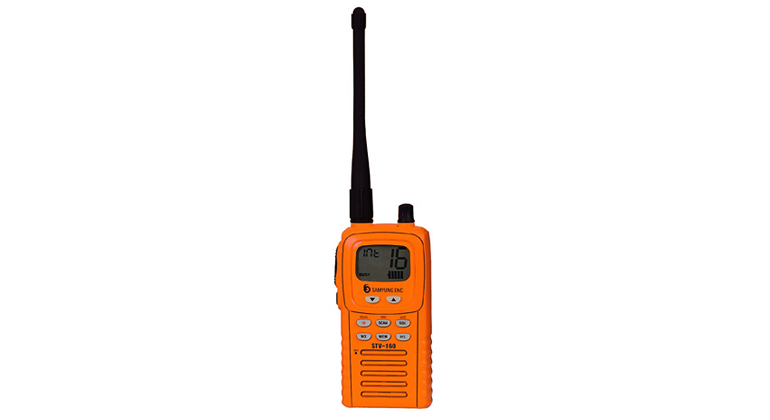

Samyung STV 160

Standard

  • Channel : All current USA, International and Canadian channels, plus 10 Weather Channels
  • Channel Spacing : 25KHz
  • Supply Voltage : 7.2 Vdc 1350mAH
  • Current Drain : Standby 40mA
  • RX - 190mA st 0.5W audio output(1KHz)
  • TX - Less than 1A at 2W, 0.7A at 1W, and 0.6A at 0.5W
  • Operating Temperature Range : -20¡É to + 60¡É
  • Battery Life : 8 Hours (TX : 10%, Standby : 90%)
  • Dimensions : 125mm(H)¡¿65.1mm(W)¡¿36mm(D)/4.92¡È(H)¡¿2.55¡È(W)¡¿1.41¡È(D)
  • Weight : 420g

Standard

  • Frequendy Range : 156.025 to 157.425 MHz
  • RF Output Power: Selectable 2W, 1W, 0.5W into 50§Ù at 7.2Vdc
  • Spurious Emissions & Harmonic : -65dB at 2W, -55dB at 1W and 0.5W
  • AF Distortion : Less than 3% at 1KHz for ¡¾ 3KHz Deviation
  • Max Deviation : ¡¾5KHz
  • Frequency Satability : ¡¾5ppm
  • FM Noise : More than -40dB below audio

Standard

  • Frequency Range : 156.025 to 163.275 MHz
  • Circuit Type : Dual conversion superheterodyne
  • Sensitivity : 0.2§Å at 12dB SINAD
  • Adjacent Channel Selectivity : More than 70dB
  • Intermodulation Response : More than 65dB
  • Spurious Response Rejection : More than 70dB
  • Audio Output power : 0.5W at 10% distortion into 8 §Ù load

Features

  • Compliant with ITU-R, IMO Regulation
  • Circuit Type : Dual conversion superheterodyne
  • Weather Channel Available
  • Mimory Scanning Function
  • Dual Scanning Function
  • Waterproof at 1m Depth for 5 Minutes
  • Long Life Lithium & NIMH Battery
  • Power Saving Functions
  • Easy Operation with a Hand in Glove
