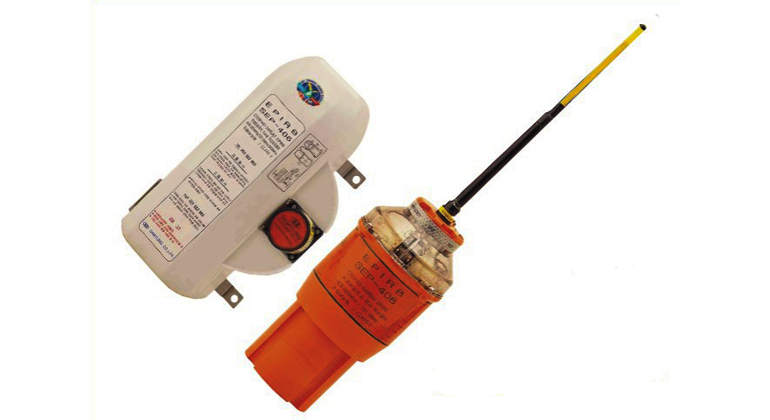

SEP 406 EPRIB

Features:

SEP-406 EPIRB complies with CCIR, RTCM, COSPAS-SARSAT and GMDSS performance standards of IMO with transmitting frequencies of 406 MHz / 121.5 MHz.

SEP-406 EPIRB, which is designed to be watertight and for ease of installation, have a hydraulic release mechanism to release automatically by water pressure.

• fully GMDSS compliant
• compact and light
• simple and safe to operate
• automatic float free housing
• totally watertight
• self-test

Specifications:

GENERAL:

• Material housing : ABS Plastic
• Strobe light : 20times per minute (min. 0.75 candela)
• Temperature : Operating -20℃ ~ +55℃
• Battery : Lithium - 4 years service life
• Operating life : - 48 hours at -20℃ - 80 hours at +20℃
• Transmission time : 440㎳±1%
• Repetition : 50s±5%
• Weight : 1.5㎏

406MHz SATELLITE TRANSMITTER:

• -Frequency : 406.025㎒ ±2ppm
• -Output power : 5W±2㏈
• -Radio type : G1B
• -Modulation : Phase modulation 1.1 ± 0.1 rad
• -Data encoding : Bi phase L
• -Stability : Short term : ≤ 2 ×10-9
• -Medium term : ±1×10-9
• -Residual noise : ≤ 3 ×10-9
• -Bitrate : 400b/s
• -Antenna : Onmidirectional Whip Antenna
