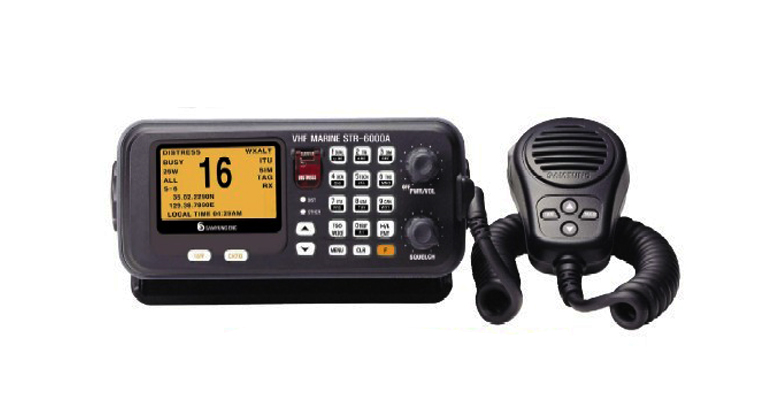

STR 6000A VHF DSC

FEATURES:

  • Includes all channels specified in ITU-RR(NOAA Weather channel)
  • DUAL/TRIPLE WATCH function and TAG SCAN function built-in.
  • 20 MMSI number in 2 groups-MMSI number save, edition and call function.
  • Latitude/Longitude display function when connected with GPS.
  • Over 160 characters can be seen in one large LCD.
  • Priority selection of Ch.16 and adoption of noise free mic.
  • Compact & light design for any-where installation.

Specifications

  • TX Frequency : 151.000~159.150MHz
  • RX Frequency : 151.000~163.275MHz
  • Communication Mode : Simplex and Semi-Duplex
  • Channel Number
  • : 183 channels (ITU 55, USA 57, CAN 61, WEA 10)
  • Private Channel : 760 channels
  • Type of Emission : FM(16K0G3E), DSC(16K0G2B)
  • Freq. Stability : ±10 ppm(-20℃ ~ +60℃)
  • Antenna Impedance : 50?
  • Consumed Currency (13.6V)
  • : TX high 5.5A max Max. Audio 1.5A max
  • Power Supply
  • - DC 24V (DC 18 ~ 31.2V)
  • - AC 100 ~ 120V, AC 200 ~ 240V

Components:

  • STANDARD:
  • Transceiver Unit(STR-6000A)
  • Hand MIC(SM-6000)
  • Speaker (SS-6000)
  • Installation Material
  • Instruction Manual OPTION
  • Whip Antenna (SAN-150)
  • Power Supply (SP-580AD)
  • Bracket for Flushing Type(SMB-60)
  • EMG LIGHT
  • Printer(DPU-414)
